Solid Irrigation Set

Solid Irrigation Set

Rama solid set consists of main & laterals with raiser pipes with sprinklers that can be quickly and easily deployed in the field.

100% quick coupling:

Our unique quick coupling design is easy to use and prevents water leakage when the pips are under pressure. The couplers can tolerate 30-degree inclination. Pipes and coupler are made from hot dipped galvanized steel and can withstand 20 bar pressure.

Easy Deployment:

The process of deploying the system is very easy and does not require any special skills. 25 hectares can be deployed in one day by a team of three.



Reduce Storage space:

Pipes can be easily stored of season and can be pilled on top of each other( up to 4 meters).

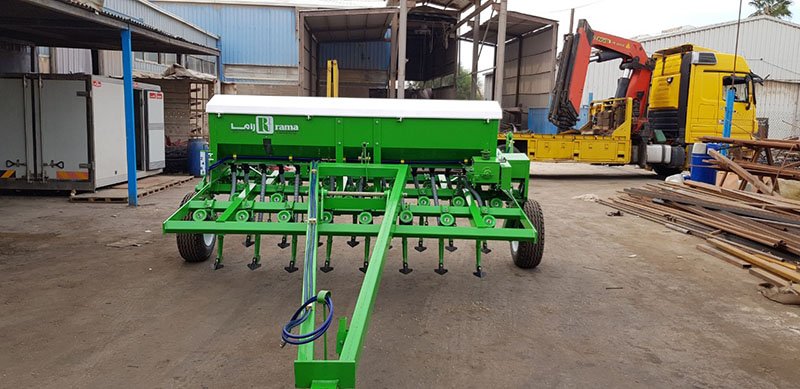

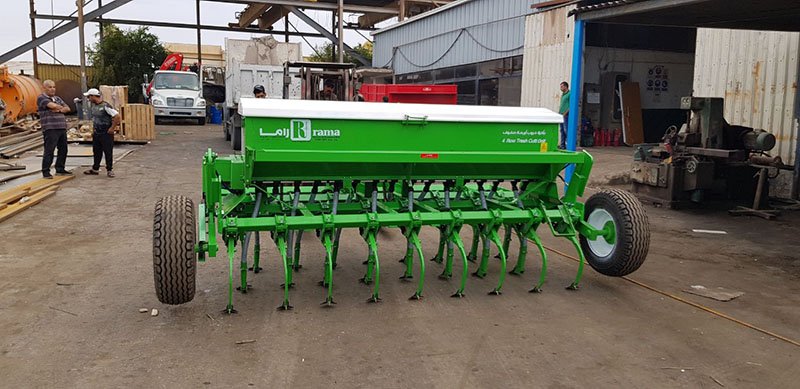

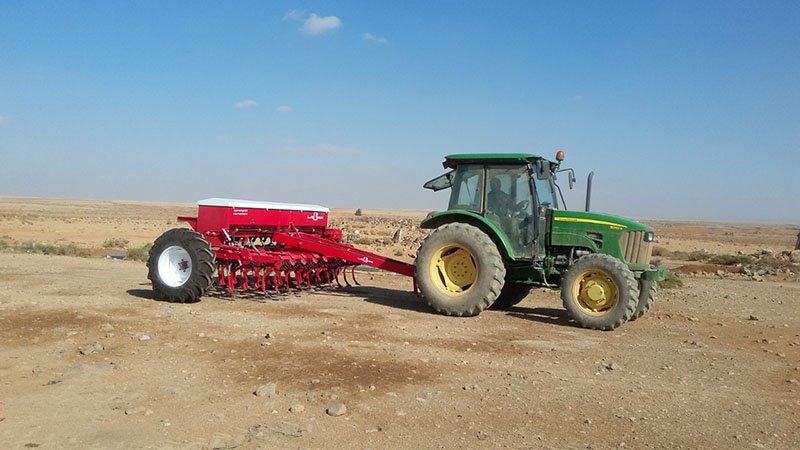

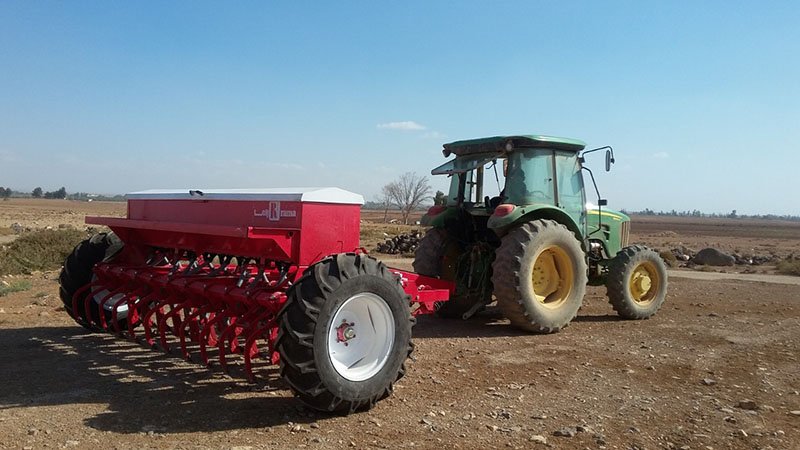

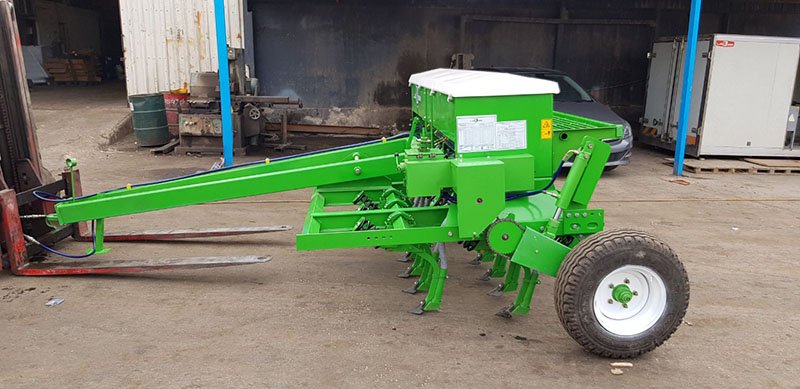

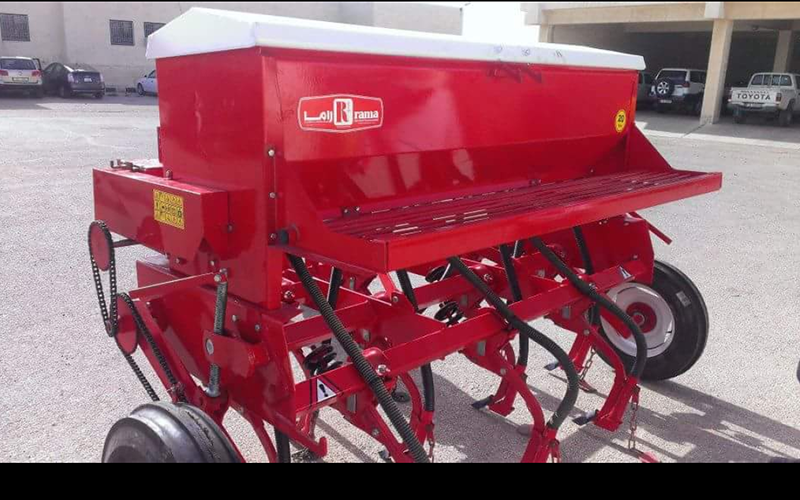

Trash Culti Drill

Trash Culti Drill

Features

  • Rama’s Four Row Trash Culti Drill meets your needs to a great extent
  • It’s designed to sow, spread seeds, and distribute fertilizers in one operation and in any arid land, giving the best results for an adequate depth and distribution of seeds and fertilizer
  • It’s equipped with a Multi-Speed Gearbox which controls the seed and fertilizers distribution
  • It’s equipped with a Hydraulic System for transport & depth control



Specifications

SIZE

10 ROW

13 ROW

16 ROW

19 ROW

Sowing Width

1.8m (5’10”)

2.3m (7’8”)

2.9m (9’6”)

3.4m (11’3”)

Sowing Width

10

13

16

19

Overall Width

2.58m (8’5”)

3.14m (10’4”)

3.63m (11’11”)

4.21m (13’10”)

Hopper Capacities

471L

624L

768L

912L

Rear Bin Capacity (Wheat)

160kgs

210kgs

260kgs

310kgs

Front Bin Capacity (Fertiliser)

220kgs

285kgs

352kgs

420kgs

Weight Empty (Approx) Disc Drill

808kgs

959kgs

1111kgs

1332kgs

Weight Empty (Approx) Tyne Drill

670kgs

780kgs

890kgs

1040kgs

Weight Empty (Approx) Coulter/Tyne Drill

820kgs

970kgs

1,130kgs

1,395kgs

Engine Power Required - 3 Point Linkage

34kw (45hp)

48kw (65hp)

59kw (80hp)

70kw (95hp)

Engine Power Required - Trailing

26kw (35hp)

30kw (40hp)

47kw (55hp)

52kw (70hp)

Product Images

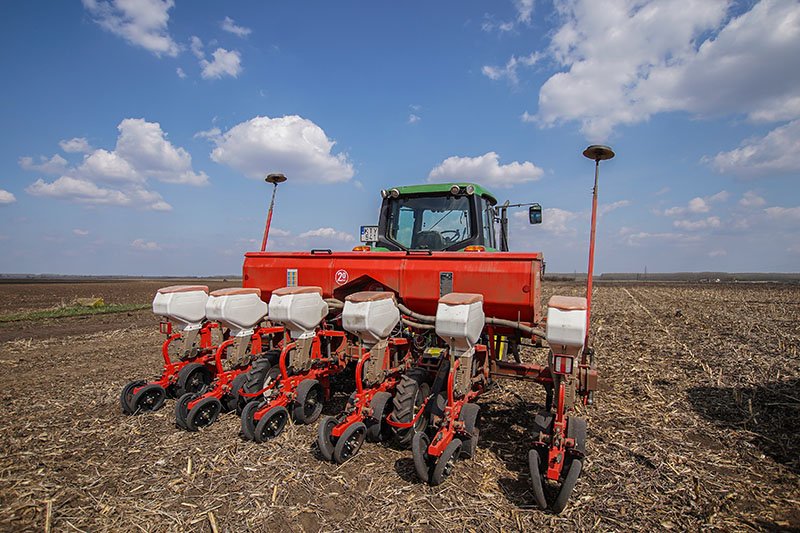

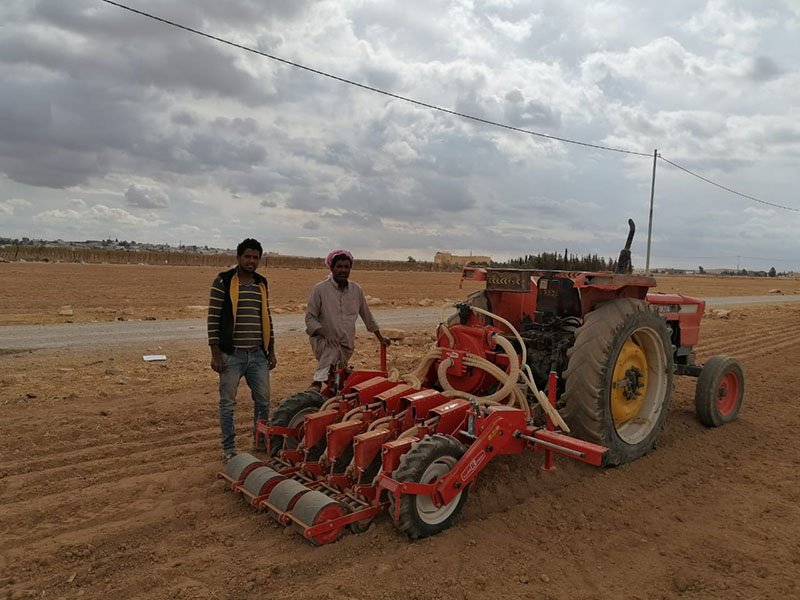

Pneumatic Planter

Pneumatic Planters

Features

  • Precision agriculture implements developed to increase productivity and to ensure accurate seeding.
  • Works for all types of seeds because of numerous seed discs available for different types of crops.

Specifications





Model



Weight (With Fertilizer System)





Tractor



P.T.O. RPM



Fertilizer Hopper Volume



Seed Hopper Volume



Distance Between Rows





Height





Width



Total Length (Chassis)



Number of seeding Units



KG

Power

RPM

(DM³)

(DM³)

CM

MM

MM

MM

Quantity

RVS4

1060

60

540

160x2

35x4

45 - 70 - 75 - 95

1,600

2,300

2800 - 3200

4

RVS5

1240

70

540

160x2

35x5

45 - 70 - 75

1,600

2,300

3200

5

RVS6

1420

80

540

200x2

35x6

45 - 70 - 75

1,600

2,300

4000

6

RVS8

1950

100

540

200x2

35x8

45 - 70 - 75

1,600

2,300

5600

8

Product Images

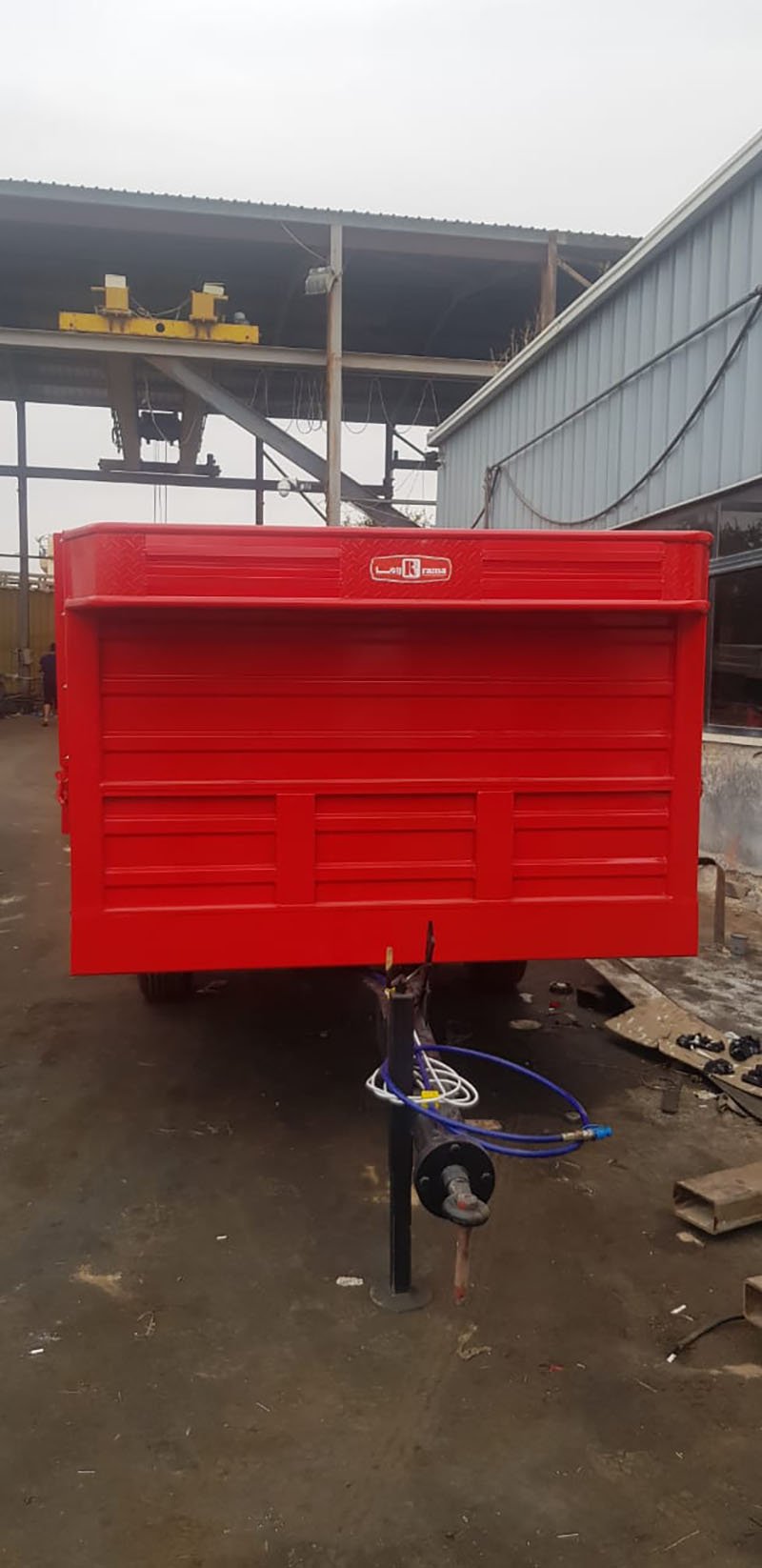

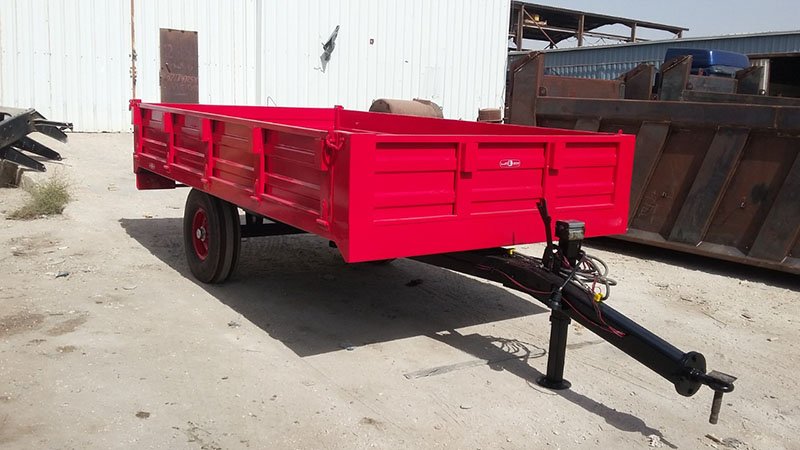

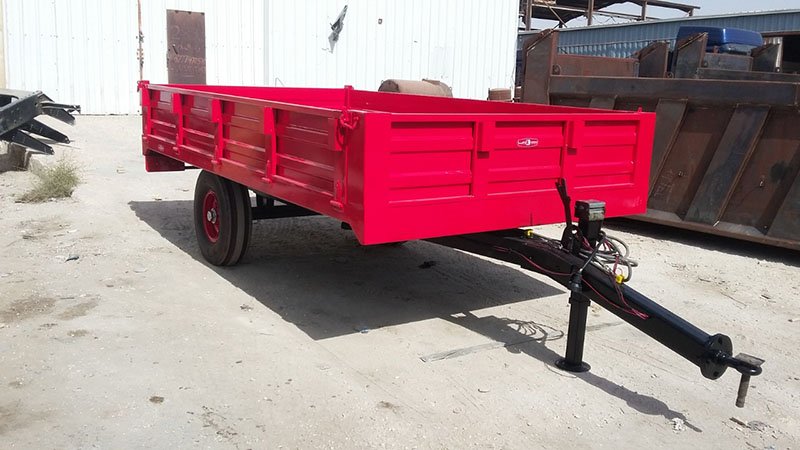

Tipping Trailer

Tipping Trailer

Features

  • Single Axle
  • Weight capacities: 3, 4 and 5 Tons
  • Body and Design
  1. The chassis is made of iron sections with an engineering design that ensures the durability and flexibility of the box during movement
  • Floor
  1. Made of Sheet Metal with a thickness of 3mm
  2. Supported by beams made of Cold-Bent Sheet Metal
  • Sides
  1. Made of Sheet Metal with a thickness of 2mm
  2. Supported by beams made of Cold-Bent Steel Sheets
  3. All sides are open except for the front
  • Movement System



  1. Equipped with one Axle and Parking Brake
  2. Supplied with two size 1 Tires suitable for carrying



Specifications



Model

Weight Cap. (KG)

Unloading

Weight (KG)

Loading

Weight (MM)

Cubic Capacity (M3)

Basic Body

Size (mMM)

Axle size (MM)



Tyre size

RTD 3000

3000

750

800

1.94

3000x1800x400

60x1300

750/16

RTD 4000

4000

1000

950

2.25

3300x1900x500

70x1400

900/16

RTD 5000

5000

1150

950

2.99

3500x1900x500

70x1700

900/16





Product Images

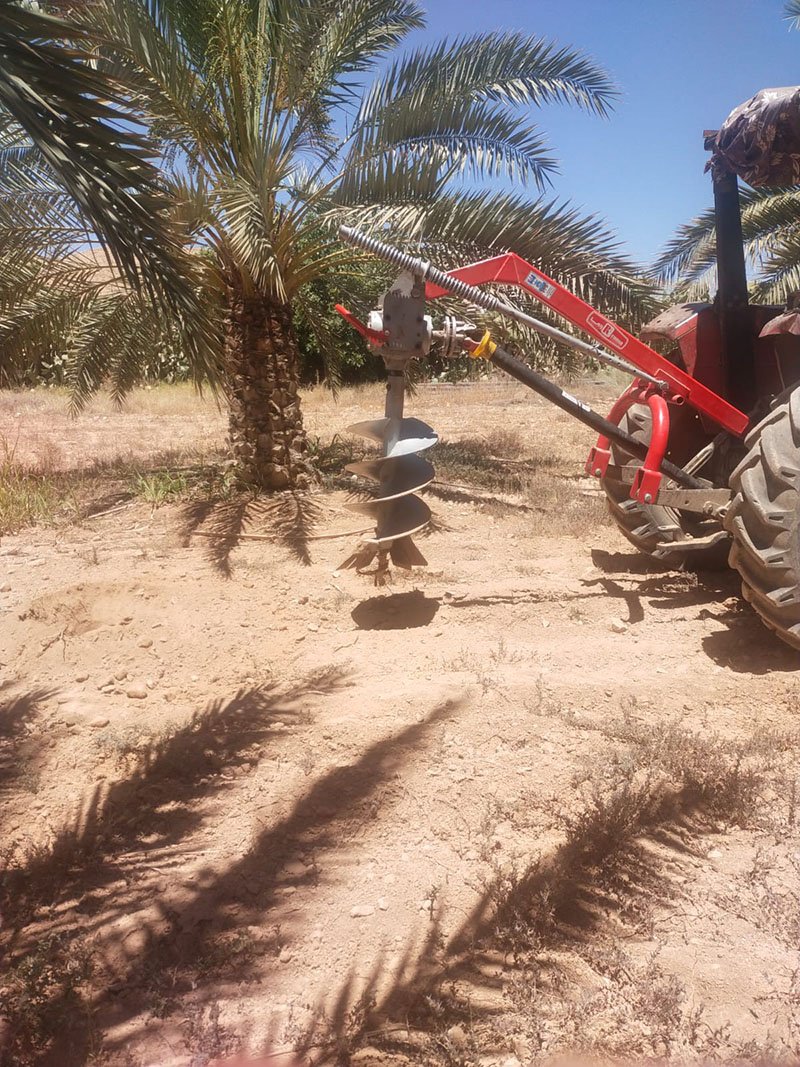

Hole Digger

Hole Digger

Features

  • Easy and fast attached to all wheeled tractors with 540 RPM on PTO
  • Suspension System comprising of Spiral Springs ensuring vertical adjustment

Specifications

  • 3-Point Linkage
  • Working by PTO
  • Required HP 30-60
  • Auger Range with 20x40x50cm

Product Images

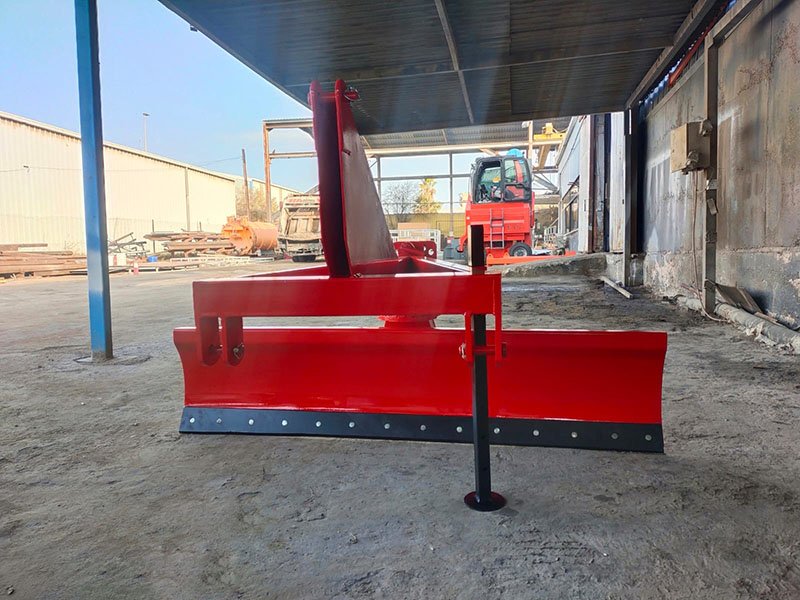

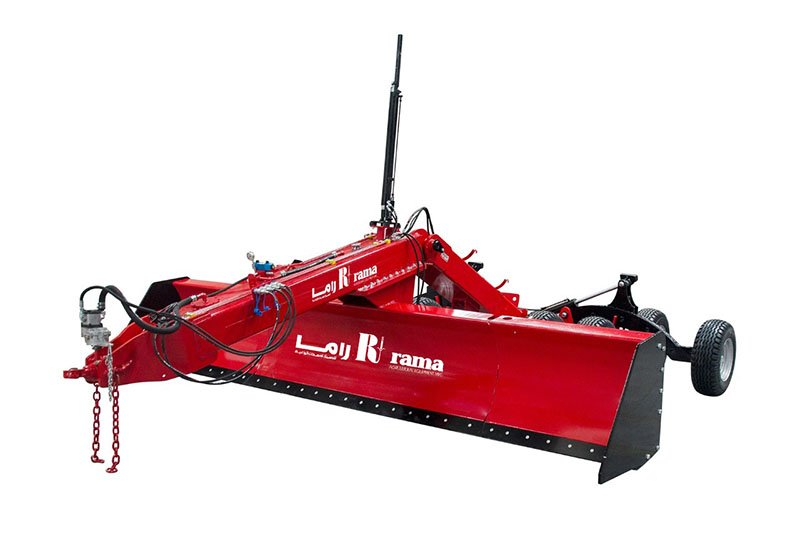

Land Leveller

Land Leveller

Features

  • Special Heat-Treated Steel, Double Side Share to get the most convenient penetration angle for maximum efficiency
  • Rugged design laser equipment is built to be strong and stable
  • Easy and fast attachment to all tractors
  • Hydraulic operated with Double-Acting Cylinder
  • Reinforced Steel Blade, and easily replaceable
  • Top Quality Steel Frame



Specifications

Models

Unit

RL 180

RL 240

RL 300

RL 360

RL 660

Working Width

MM

1800

2400

3000

3600

6000

Body Height

MM

800

800

800

800

800

Thickness (Body/side)

MM

5-May

5-May

10-Aug

10-Aug

16-Dec

Tires



2 X 145/13

2 X 145/13

2 X 145/16

2 X 650/16

2 X 750/16

Required Power

HP

60-70

70-80

110-120

120-130

160-220

Options

  • Laser device for automatic leveling
  • Steel base, for the laser leveling unite for sizes 300 and 360, sides are folded for easy transportation
  • Bigger sizes can be manufactured upon request



Product Images

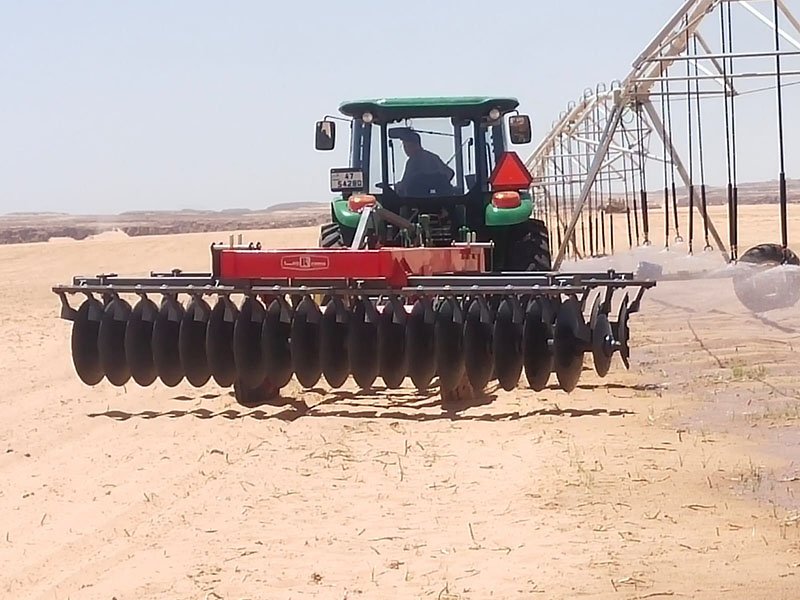

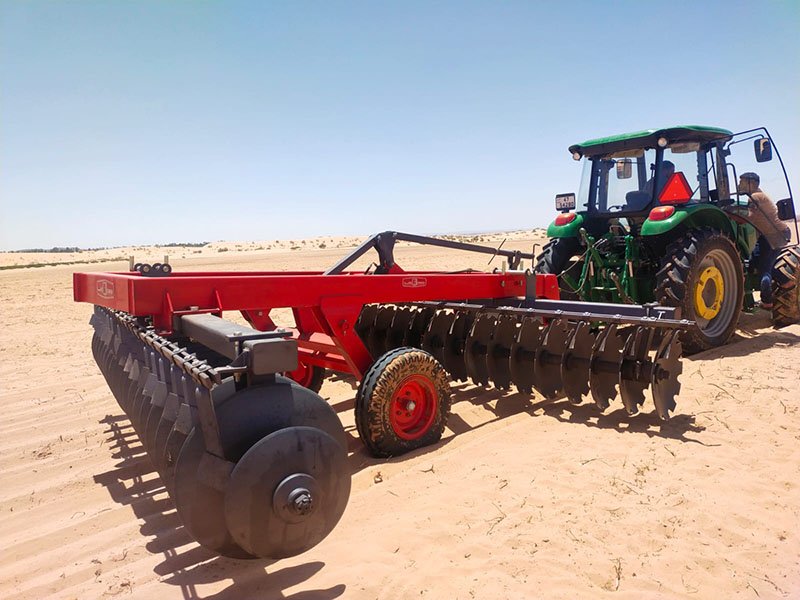

Goble Disc Harrow

Goble Disc Harrow

Features

  • A Heavy-Duty Disc Harrow with transport wheels for use with high -powered tractors
  • Ideal for high output in arduous conditions
  • The disc angle can be adjusted simply without spanners from 28-45 degrees to give the best combination for penetration and soil movement to cover trash and weeds
  • Depth is controlled using a Double-Acting Hydraulic Cylinder



Specifications

Code

DISC DIAMETER (CM)

WORKING WIDTH (CM)

WEIGHT (KG)

DISC SPACE (MM)

BEARING BED QUANTITY

REQUIRED POWER (HP)

RMGDH-16

56

176

1260

220

6

45-50

RMGDH-18

56

198

1420

220

6

50-55

RMGDH-20

56

220

1575

220

8

65-70

RMGDH-22

56

242

1735

220

8

70-75

RMGDH-24

56

264

1860

220

8

75-80

RMGDH-26

56

286

2045

220

8

80-90

RMGDH-28

56

308

2200

220

8

90-120

RMGDH-30

56

330

2360

220

8

120-140

RMGDH-32

56

352

2520

220

8

150-160

RMGDH-34

56

374

2675

220

8

160-170

Product Images

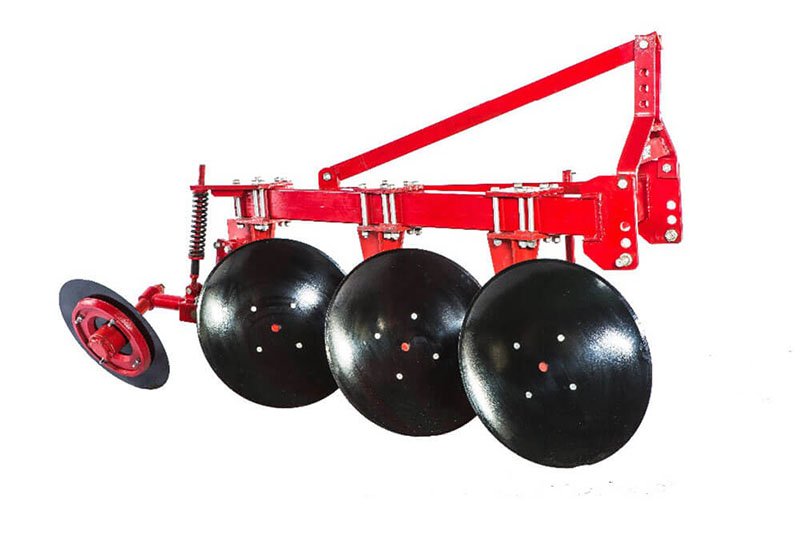

Disc Ploughs

Disc Ploughs

Features

  • Individual adjustment of cutting angle of discs
  • Adjustable Discs angle for soil penetration
  • Two height position adjustment to enable easy attachment with Upper Linkage
  • Furrow Wheel adjustable in height and angular
  • Support-Stand for tractor attachment
  • Hubs and Disc Holders in Boron Steel, with Tapper Roller Bearings



Specifications

Disc

Unit

DP-3

Hitching

CAT.

2

Width x Length x Height

MM

1780 x 1100 x 1280

Working Width - Depth

MM

950 - 300

Discs Thickness

MM

30

Diam. Of Discs

INCH

26 6 - 28

Discs

QTY

3

Required Power

HP

70-90

Weight

KG

370



Mounted Disc Cultivators

  • It is suitable for ploughing in sandy and easy soil
  • Discs mounted on Single Axle
  • Three-point Hitch
  • Heavy-Duty Frame

Product Images

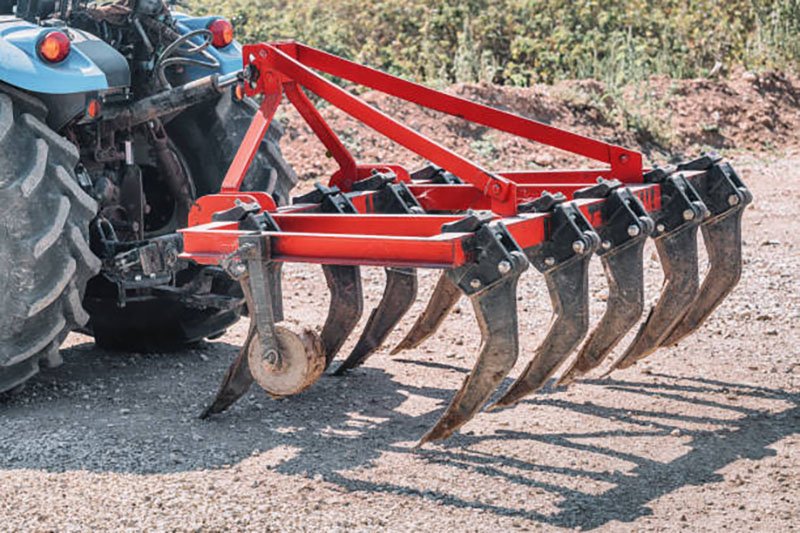

Chisel Plough

Chisel Plough

Features

  • Three-Point Hitch
  • Flexible Tines with Vertical Spring
  • Reversible Chisel
  • Shares
  • Adjustable Tine Spacing
  • Tine Set in two or three rows



Specifications

Model

Weight (KG)

Bar Mt

Tines QTY

Working Width

Working Depth

Required Power (HP)

7 RCP 2

390

1.7

7

0.10-20

180

50-70

9 RCP 2

535

2.1

9

0.10-20

230

70-90

11 RCP 2

635

2.6

11

0.10-20

280

90-110

13 RSP 2

725

3.1

13

0.10-20

330

110-130

9 RCP 3

590

1.7

9

0.10-20

180

70-90

11 RCP 3

730

2.1

11

0.10-20

220

90-110

13 RCP 3

825

2.6

13

0.10-20

260

130-150



Options

  • Depth Control Wheels

Product Images

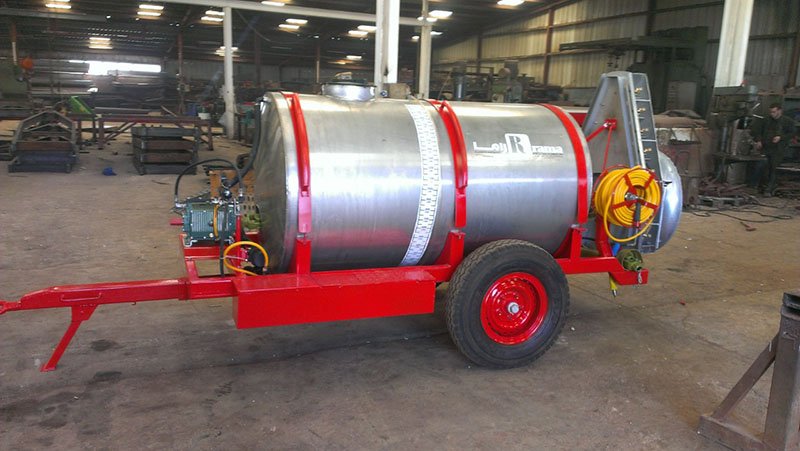

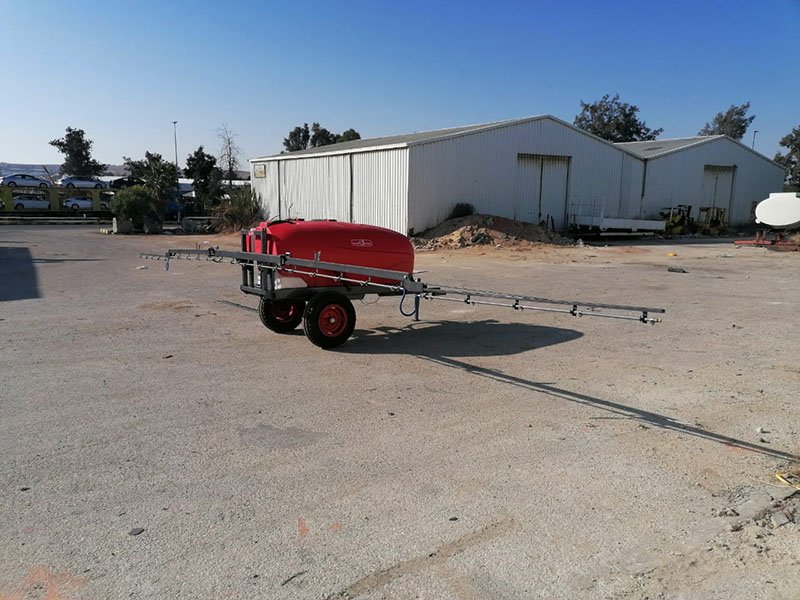

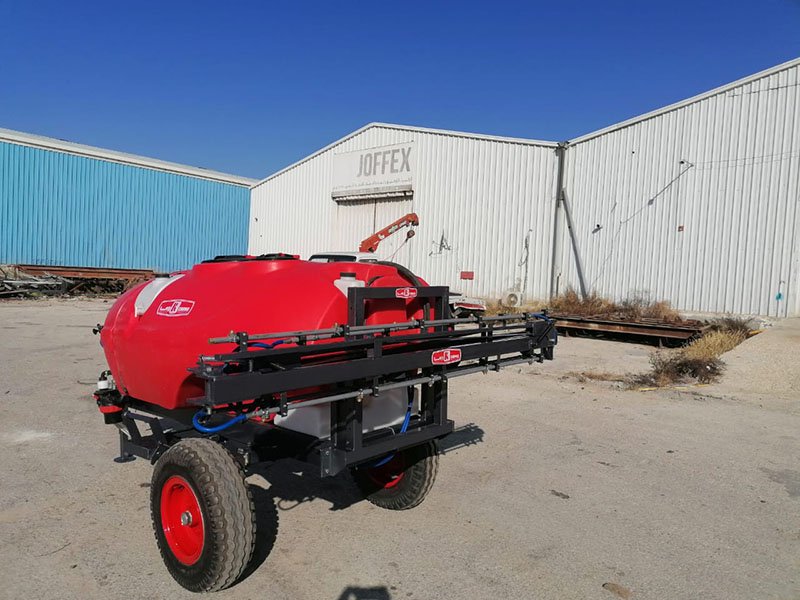

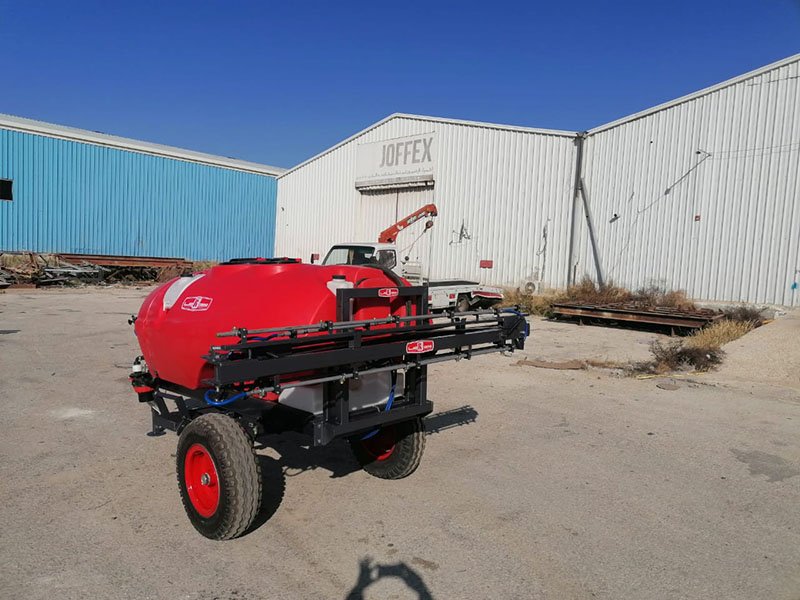

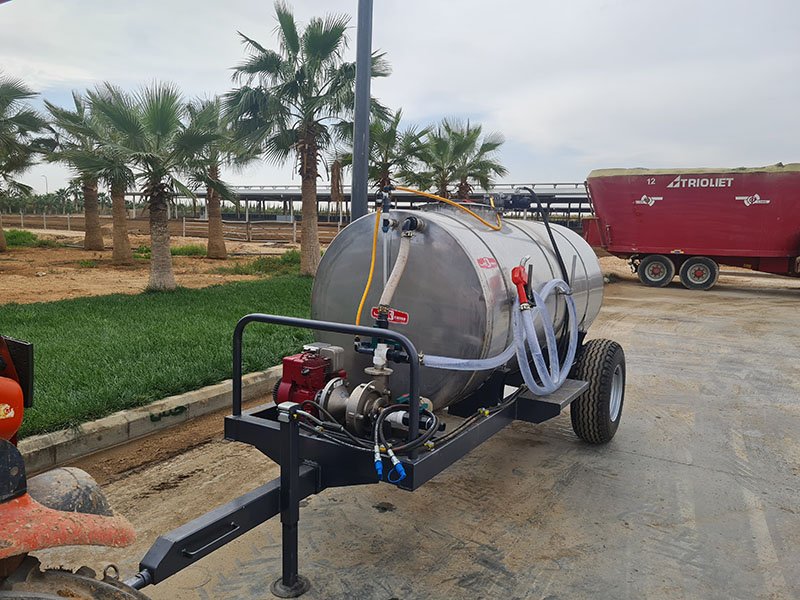

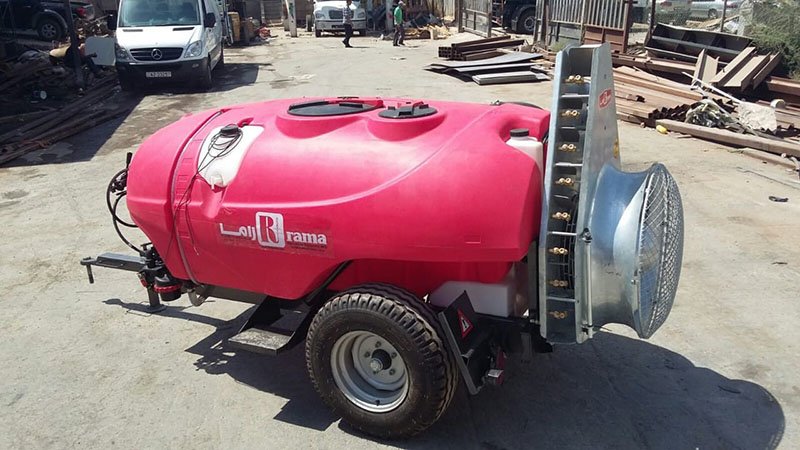

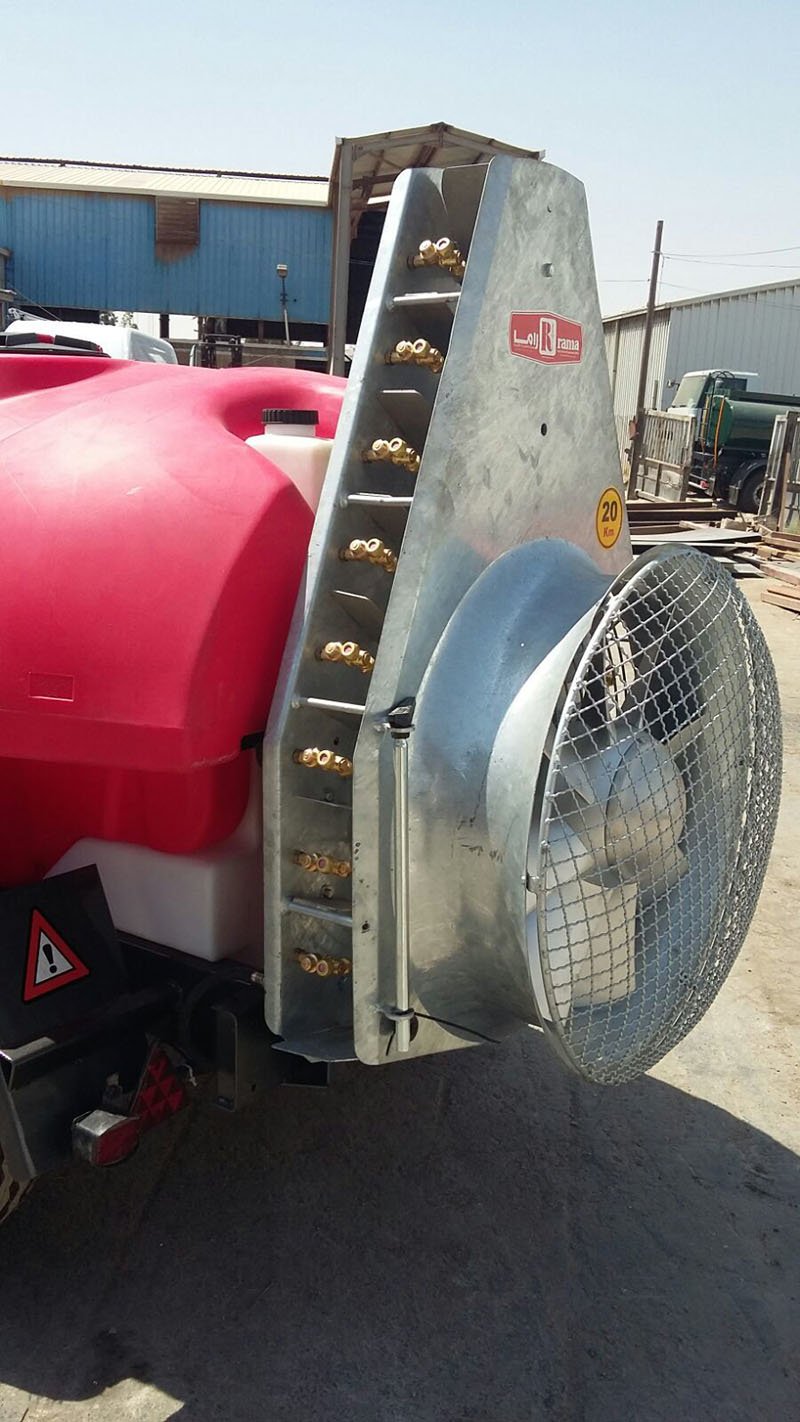

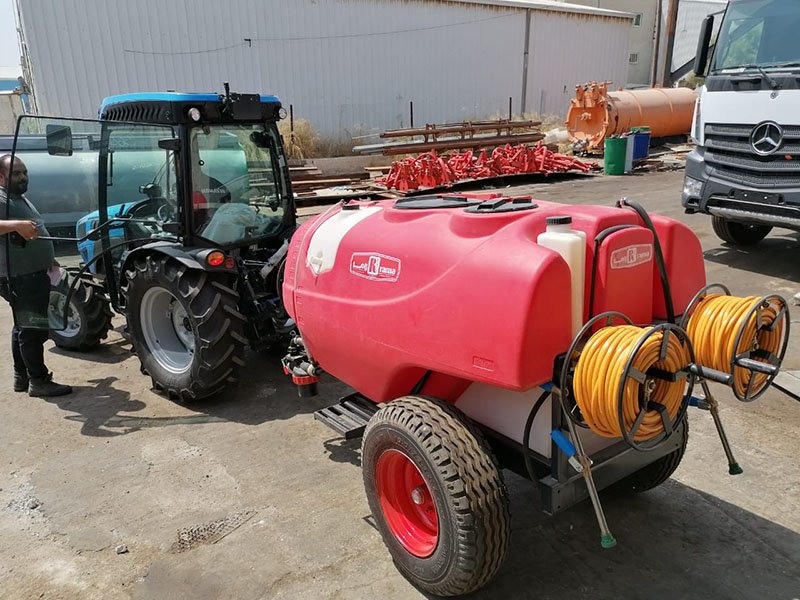

Misting Spray Tanks

Misting Spray Tanks

Features

  • Trailer or mounted version with 400, 600, 1200, and 2000liter tank capacity
  • Piston or Diaphragm Pumps
  • Powered by the Tractor PTO or Gasoline Engine
  • Stainless Steel Tank or Polyurethane
  • Pressure Regulator
  • Easy Clean Filter



Specifications

Model

Capacity

Tank Material

Tiers

RTS400

400 liters

Polyurethane

Mounted

RTS600

600 liters

Polyurethane

Mounted

RTS1000

1,000 liters

Polyurethane

Mounted

RTS1200

1,200 liters

Stainless Steel or Polyurethane

650/16

RTS2000

2,000 liters

Stainless Steel or Polyurethane

900/16



Options

  • Atomizer Sprayer (Various sizes are available)
  • Hose Reel with Spray Guns

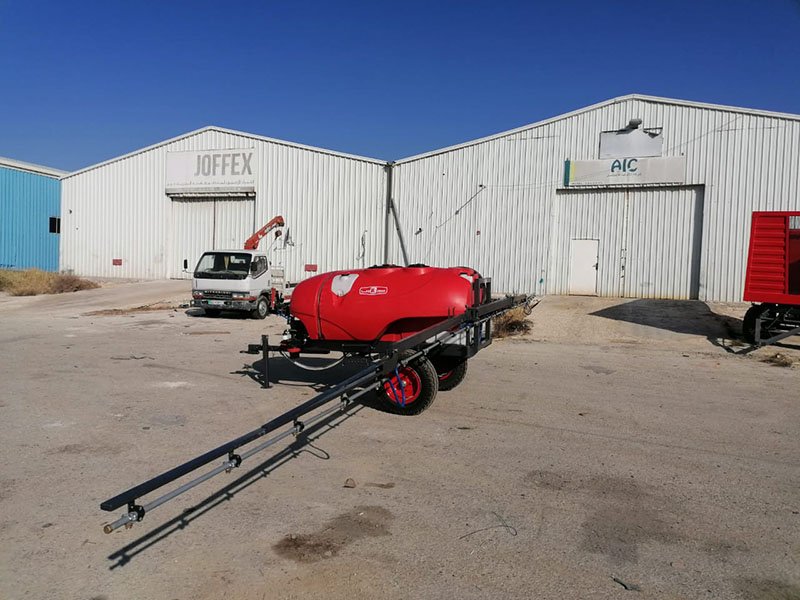

  • Spray Boom sizes 8, 12, and 16 meters

Product Images
