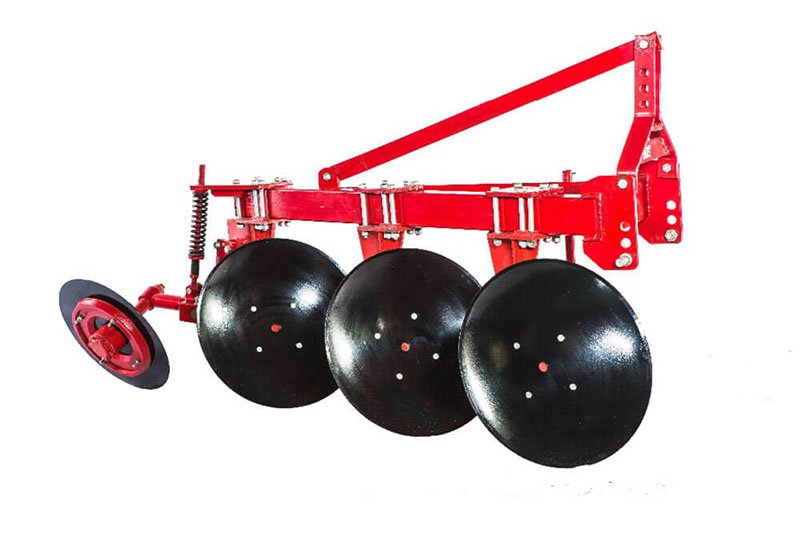

Disc Ploughs

Disc Ploughs

Features

  • Individual adjustment of cutting angle of discs
  • Adjustable Discs angle for soil penetration
  • Two height position adjustment to enable easy attachment with Upper Linkage
  • Furrow Wheel adjustable in height and angular
  • Support-Stand for tractor attachment
  • Hubs and Disc Holders in Boron Steel, with Tapper Roller Bearings



Specifications

Disc

Unit

DP-3

Hitching

CAT.

2

Width x Length x Height

MM

1780 x 1100 x 1280

Working Width - Depth

MM

950 - 300

Discs Thickness

MM

30

Diam. Of Discs

INCH

26 6 - 28

Discs

QTY

3

Required Power

HP

70-90

Weight

KG

370



Mounted Disc Cultivators

  • It is suitable for ploughing in sandy and easy soil
  • Discs mounted on Single Axle
  • Three-point Hitch
  • Heavy-Duty Frame

Product Images
