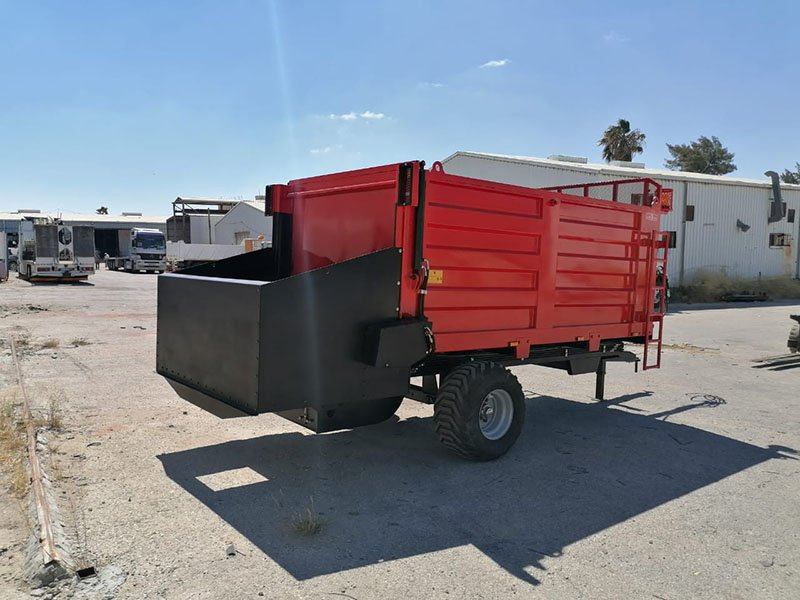

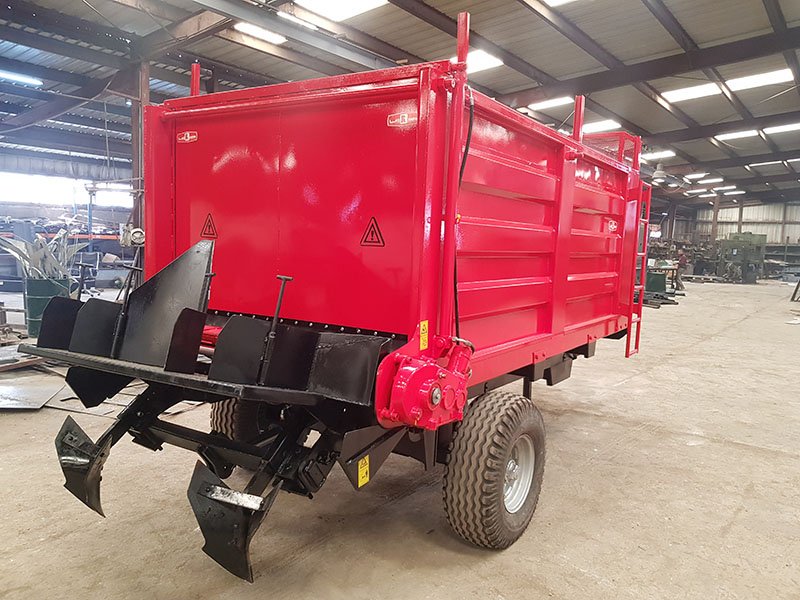

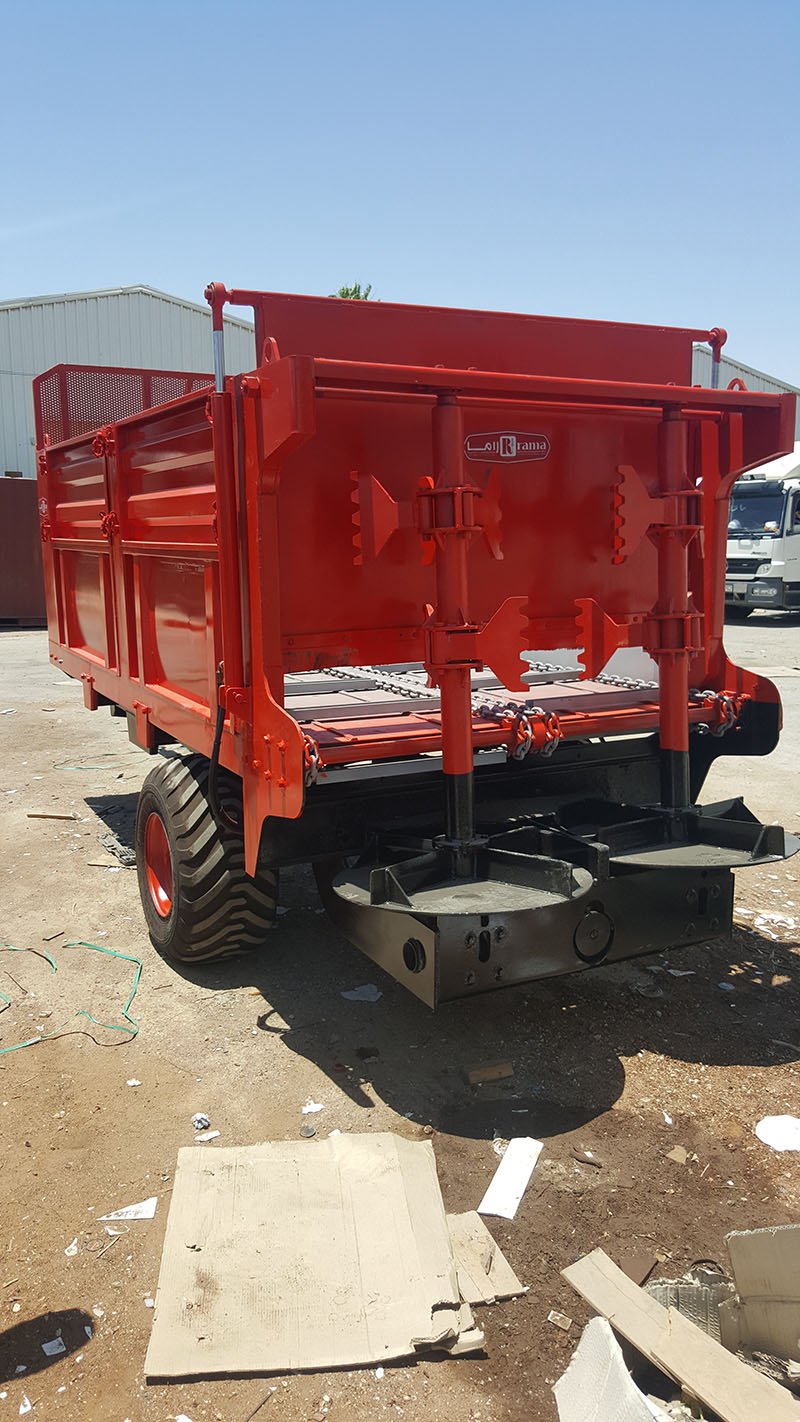

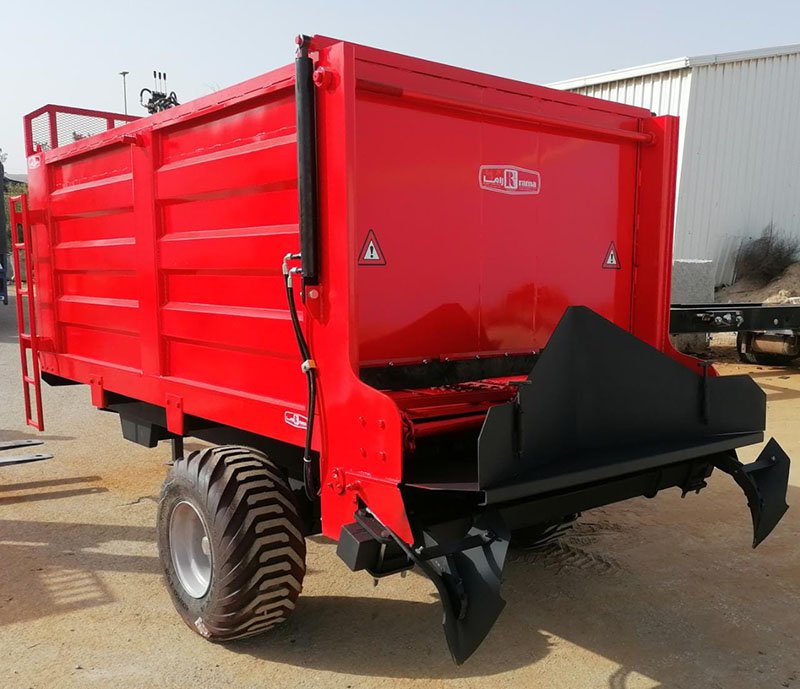

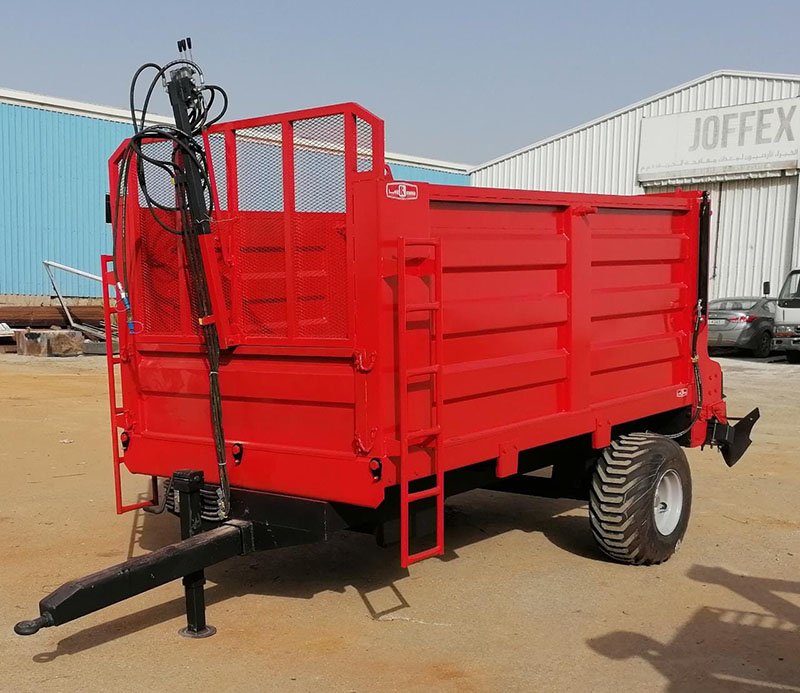

Manure & Compost Spreader
Features
Fixed Box Sides reinforced with Welded Folds Elements
Vertical and Horizontal Spreading Elements driven by the PTO Shaft
Heavy Duty Multi-Size Tires and Suspension with multi-option for the break system
Mechanical Treatment and Blasting to ensure high-quality paint
With a requested color
Working Width: 10-14m
Working Speed: 8km/hr
Single Axle and Swing Axle Type (Bogie)
The manure is leaded to the spreader elements through a conveyor belt driven by a high-efficiency Hydraulic Motor
Specifications
|
Model
|
Dimension mm
|
Capacity
|
Spreader
|
Tire Size
|
QTY
|
Axle Type
|
Tractor HP
|
|
(L X W X S)
|
Cubic Meter
|
Type
|
|
MAS-5S
|
4000X1800X700
|
5
|
Horizontal
|
900/20
|
2
|
Single
|
60-100
|
|
MAS-5B
|
4000X1500X1310
|
8
|
Horizontal
|
11.5/80 X 15.3
|
4
|
Bogie
|
60-100
|
|
MAS-5SV
|
4000X1800X700
|
5
|
Vertical
|
900/20
|
2
|
Single
|
60-100
|
|
MAS-5BV
|
4000X1800X700
|
5
|
Vertical
|
11.5/80 X 15.3
|
4
|
Bogie
|
60-100
|
|
MAS-12BV
|
4300X2000X1290
|
12
|
Vertical
|
16/70 X 20
|
4
|
Bogie
|
120-160
|
Options
Lighting and Reflectors
Special Capacities and Dimensions can be manufactured according to the customer’s request
Different Spreading Group
Mulch Opener
